A short analysis of the performance and survivial of NKE ARVOR floats deployed by Argo Canada in the Ross Sea.
In 2024 and 2025, 7 Canadian floats have been deployed in the Ross Sea. WMO numbers 4902664, 4902665, 4902667, 4902668, 4902669 were deployed in February of 2024 from the Italian ship Laura Bassi, and 4902698, 4902704 in Febraury 2025 from the New Zealand ship Tangaroa. All floats to date have been NKE ARVOR floats with SBE CTD sensors. The table below shows the floats, their total number of cycles to date, and their last reported profile on the GDAC.
Deployment Date | Last Reported | Cycle Number | |
---|---|---|---|
4902664 | 08 Feb, 2024 | 19 Dec, 2024 | 41 |
4902665 | 31 Jan, 2024 | 31 Jan, 2024 | 1 |
4902667 | 08 Feb, 2024 | 29 Apr, 2024 | 24 |
4902668 | 04 Feb, 2024 | 09 Mar, 2025 | 46 |
4902669 | 08 Feb, 2024 | 17 Mar, 2025 | 50 |
4902698 | 04 Feb, 2025 | 04 Apr, 2025 | 46 |
4902704 | 03 Feb, 2025 | 02 Jun, 2025 | 92 |
In summary, we have lost 2 floats for sure: 4902665 which had a broken conductivity cell we believe due to freezing at deployment, and 4902667 which we have not heard from since the first time it would have gone under the ice in 2024. 4902664 is likely also dead. It last reported profiles in December 2024, and then sent a few SBD messages in March of this year, but nothing since. This did contain a profile of about 300m. This has not made it to the GDAC - Chris will follow up with Anh. 4902668 and 4902669 also reported profiles in March of this year and then likely went under ice.
The floats deployed this year have also gone under the ice, but we unintentionally left set to profile daily (hence the elevated cycle counts relative to floats floats deployed a year earlier). Unfortunately this will result in data loss when they come out from under the ice and high battery consumption.

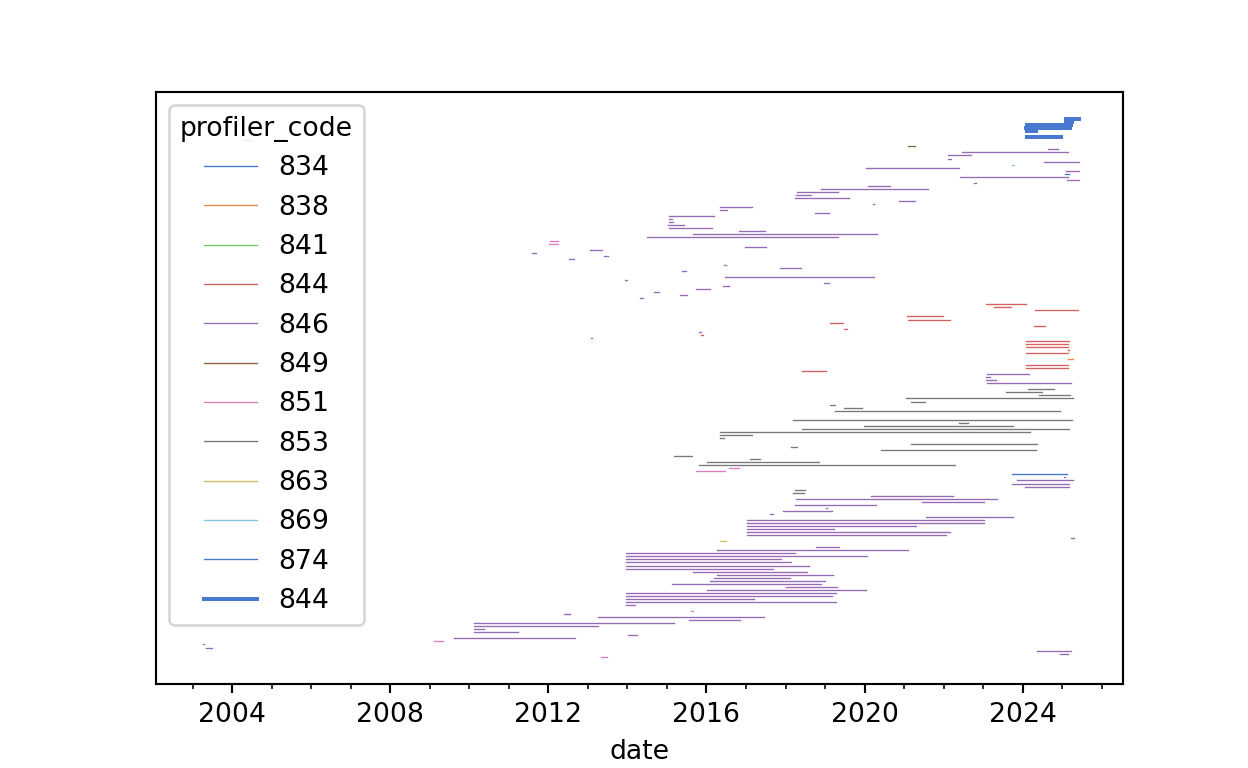

The above map shows all profiles in the area. The figure below shows the lifetime of each float in the area, where the beginning of the line represents the deployment date of the float and the end of the line represents the date of the last reported profile. Each line is an individual float. Colors show float models (platform_code in the Argo index file). 844 are mondern ARVOR floats like ours. The MEDS floats are in a thicker blue line near the top.
[]
Unsurprisingly there are a lot of shorter-lived units compared to more typical deployment locations, but also some floats that have had long lives. For the moment I am just doing this by eye but having lost 2 and decent prospects for 5 that feels like about the right ratio, especially given we know the reason for one (broken conductivity cell) and have learned that can be avoided.
